Why Your Furnace Flame Sensor is Critical for Safe Home Heating
A furnace flame sensor is a small metal rod that acts as your furnace's safety guard, detecting whether gas is actually burning when your system tries to heat your home. Without this critical component working properly, your furnace could dump dangerous unburned gas into your house or fail to heat at all.
Key Facts About Furnace Flame Sensors:
- Primary function: Detects flame presence and shuts off gas flow if no flame is detected
- Location: Metal rod positioned in the burner flame path
- Common failure signs: Furnace starts then shuts off after 30 seconds, frequent cycling, no heat
- Maintenance: Clean annually or when soot buildup occurs
- Safety role: Prevents gas leaks and potential explosions

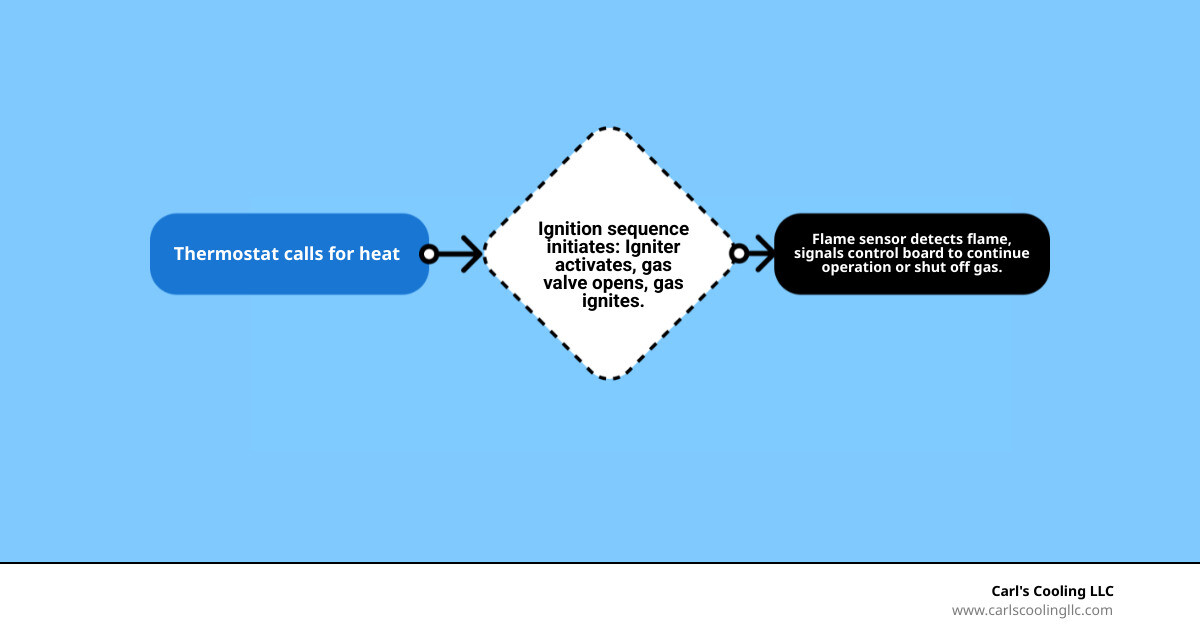

When your thermostat calls for heat, your furnace goes through a specific ignition sequence. The flame sensor plays the final and most important role - it confirms that gas is actually burning safely. If it can't detect a flame within a few seconds, it immediately signals the control board to shut off the gas valve.
This simple but vital safety device prevents two dangerous scenarios: unburned gas accumulating in your home, and your furnace continuing to pump gas without ignition. Most furnace problems that leave you without heat trace back to a dirty or faulty flame sensor.
What is a Furnace Flame Sensor and How Does It Work?
Your furnace flame sensor is essentially your heating system's safety watchdog. This small but crucial component sits quietly in your furnace, making sure that when gas flows to create heat, there's actually a flame present to burn it safely. Without this little guardian, your home could face serious safety risks.

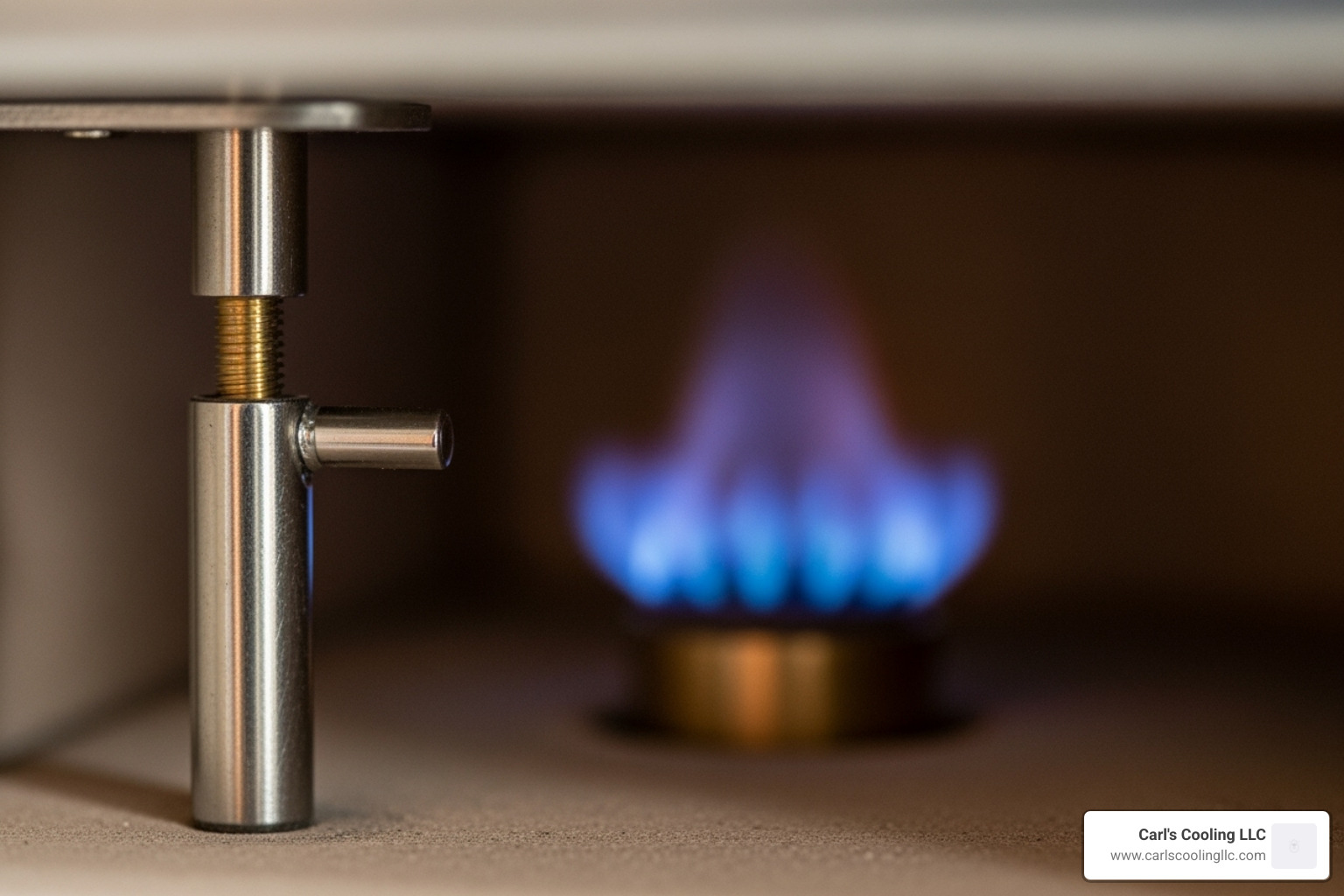

The sensor itself looks pretty simple - just a thin metal rod (usually stainless steel) with a white porcelain base. That porcelain insulator isn't just for looks - it prevents the metal rod from touching the furnace frame and messing up the electrical connection. You'll find this sensor positioned right in the path of your burner flames, typically on the opposite side from where the igniter sits.
The sensor connects to your furnace's control board through a single wire. Think of the control board as your furnace's brain - it's constantly listening for signals from the furnace flame sensor to know whether it's safe to keep the gas flowing.
The Science Behind Flame Detection
Here's where things get interesting. When your burner flames touch the metal rod, something pretty cool happens called flame rectification. The flame actually turns the air around it into an electrical conductor by ionizing it. This means a tiny electrical current can flow from the sensor rod, through the flame itself, and back to the furnace's ground.
Your furnace's control board is constantly monitoring this electrical signal, which is measured in microamps - that's incredibly small! When everything's working properly, the sensor sends a steady current between 1 to 6 microamps to the control board. This tiny signal tells the brain of your furnace, "Hey, there's definitely a flame here, so it's safe to keep the gas valve open."
But if that signal disappears or drops too low, your control board immediately knows something's wrong. Maybe the flame went out, or maybe it's not burning properly. Either way, the control board doesn't take chances - it shuts off the gas valve right away. This quick response prevents dangerous situations like gas buildup or carbon monoxide production.
Flame Sensor vs. Other Ignition Parts
It's easy to mix up your furnace flame sensor with other parts that help your furnace start up and run safely. While they all work together as a team, each has its own specific job and appearance.
The hot surface ignitor is the part that actually lights the gas - it glows red-hot like a tiny heating element. A thermocouple (found in older furnaces) also detects flames but works differently and looks like a small probe with two wires.
Your flame sensor's job is purely about safety monitoring. While the ignitor starts the fire and thermocouples generate their own power from heat, your flame sensor acts as the constant safety monitor, making sure flames stay lit and shutting things down if they don't. The most common problems you'll see are soot buildup on the rod or a cracked porcelain base, both of which can make your furnace shut down unexpectedly.
How to Diagnose and Fix a Bad Furnace Flame Sensor
When your heating system starts acting up, it can be a real headache, especially during colder months. If your furnace is frequently cycling on and off, or failing to stay lit, a faulty furnace flame sensor might be the culprit. We've seen it countless times at Carl's Cooling LLC! Getting to the bottom of these issues can save you a lot of discomfort and even prevent more serious problems.
Sometimes, addressing these issues is a key part of routine maintenance, as highlighted by experts at The Washington Post, who emphasize the importance of regular HVAC check-ups. The good news is that flame sensor problems are often relatively straightforward to diagnose and fix.
What are the Symptoms of a Bad Furnace Flame Sensor?
A malfunctioning furnace flame sensor often gives clear warning signs that something's not right. The most telltale symptom is frequent cycling on and off, also called short cycling. Your furnace will ignite, run for a short period (sometimes as little as 30 seconds), and then shut off, only to try and restart again a few minutes later. This frustrating dance happens because the sensor detects the flame initially but then loses the signal, causing the control board to cut the gas supply as a safety measure.
Another common sign is when your furnace fails to stay lit. The burners might light up beautifully, but then the entire system immediately shuts down. This means the sensor isn't confirming the flame's presence, so the safety system kicks in and cuts the gas supply. After 3 to 5 failed ignition attempts, most furnaces go into lockout mode for up to 3 hours, leaving you in the cold!
You might also notice no heat or insufficient heating throughout your home. When your furnace struggles to stay on, it can't provide consistent warmth. Cold spots become more noticeable, and your thermostat constantly calls for heat without success.
Visible damage on the sensor itself tells its own story. If you can see the metal rod and notice it's covered in soot or corrosion, it's likely interfering with the sensor's ability to conduct electrical current. A cracked porcelain base is equally problematic since the porcelain insulator is crucial for proper operation. When it's damaged, the sensor might ground out on the furnace frame, leading to improper readings.
While not a direct sign of sensor failure, a yellow flame instead of blue indicates incomplete combustion. This creates excessive soot buildup on the flame sensor rod, which acts like an insulator and prevents accurate flame detection. Yellow flames also signal potential carbon monoxide issues that need immediate attention.
Testing the Sensor with a Multimeter
If you suspect your furnace flame sensor is causing problems and you're comfortable with basic electrical work, testing it with a multimeter can provide valuable insights. However, safety always comes first at Carl's Cooling LLC, so please follow these precautions carefully.
Safety is absolutely critical before you begin. Turn off all power by locating the main power switch for your furnace (usually on a wall near the unit) and flipping it to "OFF." For extra protection, turn off the furnace breaker at your main electrical panel. Next, locate the gas shut-off valve and turn it to "OFF" as well. Give your furnace at least 30 minutes to cool down completely before touching any components.
The testing process requires precision and patience. Start by locating the flame sensor - that slender metal rod with a single wire positioned near the burners. Gently disconnect the wire that connects the sensor to the control board. Set your multimeter to measure DC microamps (µA DC), ensuring your meter has this specific setting since you're measuring very small currents.
Connect one multimeter lead to the flame sensor's terminal and the other lead to the wire you just disconnected. You're placing the multimeter in series with the circuit so current flows through the meter. With extreme caution, briefly restore power and gas to the furnace, then set your thermostat to call for heat.
Reading the results tells you everything you need to know. As the furnace attempts to ignite, watch the multimeter carefully. Once the flame establishes, you should see a microamp reading. A properly functioning furnace flame sensor typically produces readings between 1 and 6 microamps (µA).
If your multimeter shows significantly lower than 1 µA, or no reading at all when flame is present, the sensor has a problem. It could be dirty, corroded, or simply worn out. However, if the reading looks good but your furnace still shuts off, the issue might lie elsewhere - perhaps with the control board or other safety components. This is where professional expertise becomes invaluable for thorough diagnosis and repair.
A Homeowner's Guide to Cleaning and Replacement
When your furnace flame sensor starts acting up, you don't always need to call a professional right away. Sometimes, a little DIY maintenance can save the day and get your home toasty again. Think of it like cleaning your glasses - when they get dirty, you can't see clearly, and when your flame sensor gets dirty, it can't "see" the flame properly.
Before we dive in, let's gather what you'll need. You'll want a screwdriver (usually a nut driver or Phillips head, depending on your furnace), some emery cloth or fine-grit sandpaper, and a clean, lint-free cloth. Having some isopropyl alcohol on hand for a final wipe is helpful too, but not essential.
The beauty of this job is that it doesn't require any fancy tools or years of HVAC experience. Most homeowners can tackle this in about 15 minutes once they know what they're doing.
Step-by-Step Guide to Cleaning Your Furnace Flame Sensor
Ready to get your hands dirty? Here's how to bring your furnace flame sensor back to life, step by step.
Start with safety - this can't be stressed enough. Turn off both the power switch for your furnace and the main gas supply valve. Your furnace has been working hard, so give it at least 30 minutes to cool down completely. Nobody wants to accidentally touch something hot!
Find your sensor by opening the burner compartment door. Look for that slender metal rod we talked about earlier - it's about as thick as a pencil lead, with a white or slightly discolored porcelain base. It'll have a single wire attached and sits right where the flame would hit it. Don't mix it up with the hot surface ignitor, which looks more like a glowing stick when it's working.
Remove the sensor carefully by unscrewing the mounting screw (usually just one) and gently pulling it free from its bracket. Then disconnect the wire - no yanking needed, just a gentle wiggle should do it.
Clean that metal rod like your comfort depends on it - because it does! Start gentle with a clean cloth or even a dollar bill. Sometimes that's all it takes to remove the invisible layer of gunk that's causing problems. If you need more power, move up to emery cloth or fine sandpaper, but avoid anything too aggressive. Wire brushes might seem like a good idea, but they can actually damage the protective coating and create tiny pits that make future corrosion worse.
Avoid touching the porcelain insulator while you work. The oils from your skin can damage it, and a damaged insulator means a sensor that doesn't work properly.
Put everything back together in reverse order. Reconnect the wire, position the sensor exactly where it was before, and tighten that mounting screw firmly. A good, tight connection ensures proper grounding, which is essential for the sensor to do its job.
Test your handiwork by turning the gas and power back on, then setting your thermostat to call for heat. Cross your fingers and watch - your furnace should now ignite and stay lit without that frustrating short cycling.
When to Replace vs. Clean
Sometimes cleaning just isn't enough, and knowing when to throw in the towel can save you time and frustration.
If you're cleaning the sensor more than once a season, it's trying to tell you something. Each cleaning session strips away a bit more of the protective coating, making it even more prone to future buildup. You're essentially fighting a losing battle at that point.
Visible damage is another clear sign it's time to shop for a new one. Cracks in the porcelain base, a bent metal rod, or corrosion that won't budge with cleaning all spell the end for your current sensor.
Here's the thing about cost-effectiveness - furnace flame sensors are surprisingly affordable parts, especially considering how critical they are for your safety. When you weigh the cost of a new sensor against the time spent repeatedly cleaning an old one (and the risk of being left in the cold when it fails), replacement often makes more sense.
Buying a replacement is straightforward, but make sure you get the right one for your furnace. Check your furnace's make and model, and look for the part number if you can find it. Many quality manufacturers like Robertshaw and White-Rodgers make reliable sensors, and some universal options can even be bent or cut to fit your specific setup.
If you're not comfortable with any of these steps, or if cleaning doesn't solve your problem, that's what we're here for at Carl's Cooling LLC. Sometimes the best DIY decision is knowing when to call in the professionals who can diagnose and fix the issue quickly and safely.
Frequently Asked Questions about Furnace Flame Sensors
Over the years at Carl's Cooling LLC, we've answered countless questions about furnace flame sensors. These little components might be small, but they sure generate a lot of curiosity! Let's tackle the most common questions we hear from homeowners.
How often should a furnace flame sensor be cleaned?
Here's where we might surprise you - we don't actually recommend cleaning your furnace flame sensor on a strict annual schedule like some suggest. Instead, we believe in the "if it ain't broke, don't fix it" approach. Clean your sensor only when it shows clear signs of trouble, like your furnace short cycling or refusing to stay lit.
Why this approach? Well, every time you clean that metal rod with abrasive materials, you're potentially wearing down its protective coating. Think of it like sandpaper on a delicate surface - a little goes a long way, but too much can cause more harm than good.
That said, we absolutely recommend scheduling an annual professional furnace check-up before heating season kicks in. During these visits, our technicians will inspect your flame sensor and clean it only if needed. We know exactly how much cleaning is appropriate and can spot when a sensor is ready for retirement.
If you find yourself needing to clean your sensor more than once per heating season, that's usually your furnace's way of saying "time for a replacement!" Listen to what it's telling you.
Can a bad flame sensor cause a gas smell?
This is a great question that touches on an important safety topic. A malfunctioning furnace flame sensor doesn't directly cause gas leaks - that's not how it works. In fact, its primary job is to prevent dangerous gas accumulation by shutting off the gas valve when no flame is detected.
However, a bad sensor can create situations that might lead to brief, faint gas odors. When your sensor is acting up, your furnace might go through repeated failed ignition attempts. Each attempt involves a small amount of gas that doesn't ignite properly, which can sometimes create a slight gas smell that quickly fades away.
More concerning is when a failing sensor contributes to incomplete combustion, leading to soot buildup or yellow flames instead of the proper blue ones. Yellow flames are a red flag - they indicate your furnace isn't burning gas efficiently and could be producing carbon monoxide.
Here's the important part: if you ever smell a strong gas odor, don't investigate - evacuate your home immediately and call your gas company. Carbon monoxide is odorless but deadly, so if you notice yellow flames or experience symptoms like headaches or dizziness, get fresh air and call for help right away.
Is replacing a flame sensor a difficult DIY job?

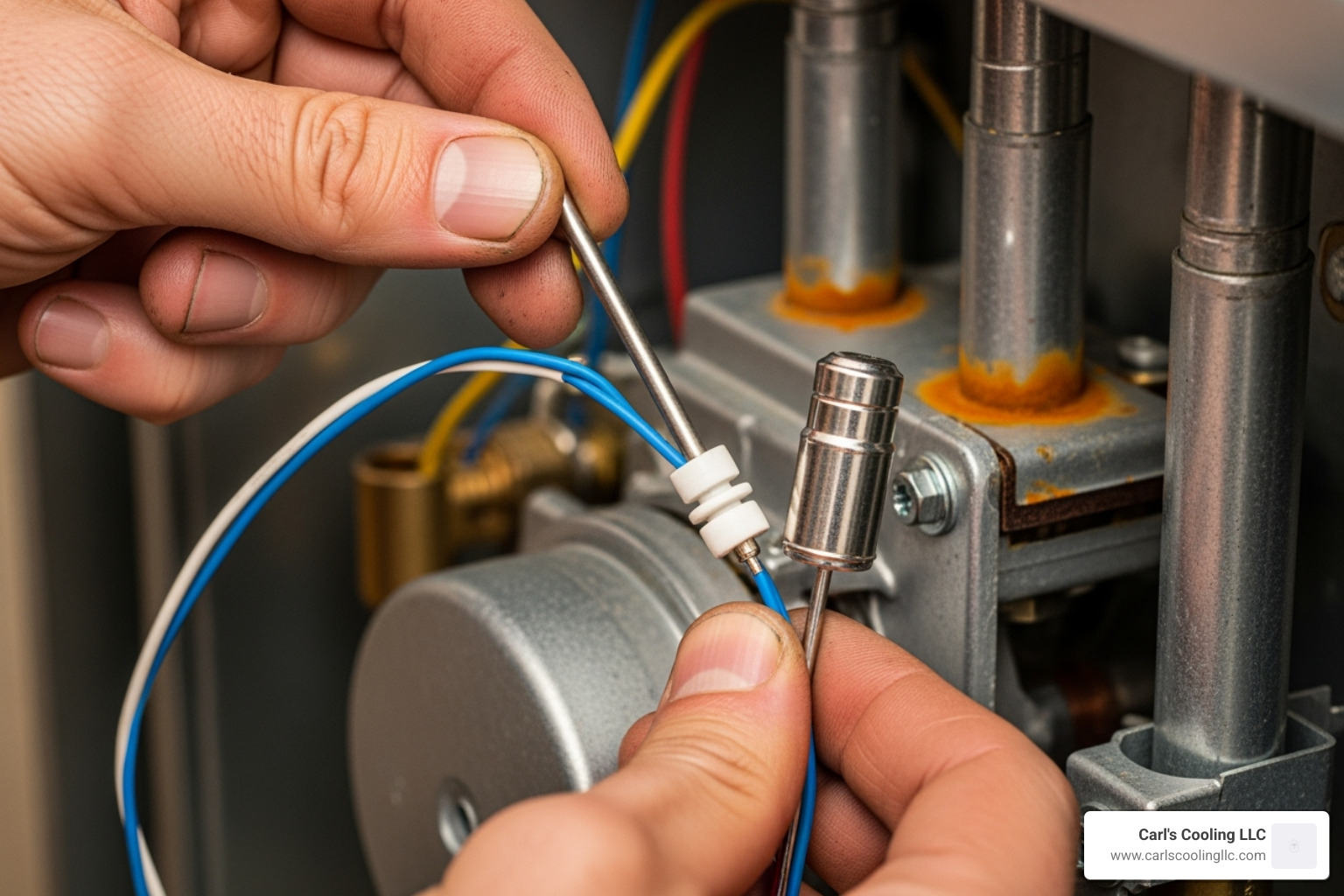

We get this question a lot, and honestly, it's one of the more straightforward furnace repairs a handy homeowner can tackle. The furnace flame sensor is an inexpensive part that can have a huge impact on getting your heat back up and running.
The actual replacement process is pretty simple - it's usually just removing one or two screws, disconnecting a wire, and reversing the process with the new part. Most homeowners with basic tool skills and a healthy respect for safety can handle this job.
But here's the key phrase: "healthy respect for safety." You absolutely must be comfortable working around gas and electrical components. You need to follow all safety procedures, including shutting off both power and gas to your furnace. If you feel even a little uncertain about any step in the process, please don't hesitate to call us.
There's no shame in calling a professional. We'd much rather have you call us for a simple sensor replacement than deal with a more serious problem caused by an incorrect installation. Your safety and your family's comfort are worth far more than the cost of a service call.
Conclusion
Your furnace flame sensor might be one of the smallest parts in your heating system, but it's definitely one of the hardest working. This little metal rod stands guard 24/7, making sure your furnace burns gas safely and efficiently. Without it doing its job properly, you could end up shivering in the cold or facing much more serious safety concerns.
Think of it as your furnace's personal safety inspector – always checking to make sure everything's running as it should. When it detects a flame, your home stays warm. When it doesn't, it immediately shuts things down to keep you safe. Pretty impressive for such a simple-looking component!
Now that you understand how your furnace flame sensor works and what warning signs to watch for, you're better equipped to catch problems early. Whether it's that telltale short cycling or your furnace refusing to stay lit, you'll know where to start looking. And while cleaning the sensor yourself can often solve the problem, knowing your limits is just as important as knowing how to fix things.
Regular maintenance really is your best friend when it comes to heating systems. A little attention now can save you from those middle-of-winter emergency calls that nobody wants to deal with. Plus, a well-maintained furnace runs more efficiently, which is great for both your comfort and your wallet.
Of course, there are times when the DIY approach isn't the right answer. If you're dealing with gas lines, electrical components, or anything that makes you feel uncertain, that's when it's time to call in the professionals. At Carl's Cooling LLC, we've seen it all, and we're always ready to help get your heating system back on track.
